Smart Tactiles floor sign mounted on 4 mm thick tempered glass plate with stainless steel spacers for an exclusive look. The sign plate is specially designed for tactile use and is fingerprint resistant.
Numbers and letters protrude from the back plate to clearly indicate the floor number. These signs can also be delivered mounted on a plate in clear acrylic glass with spacers or as a clean sign plate with 3M glue for attachment directly to the wall.

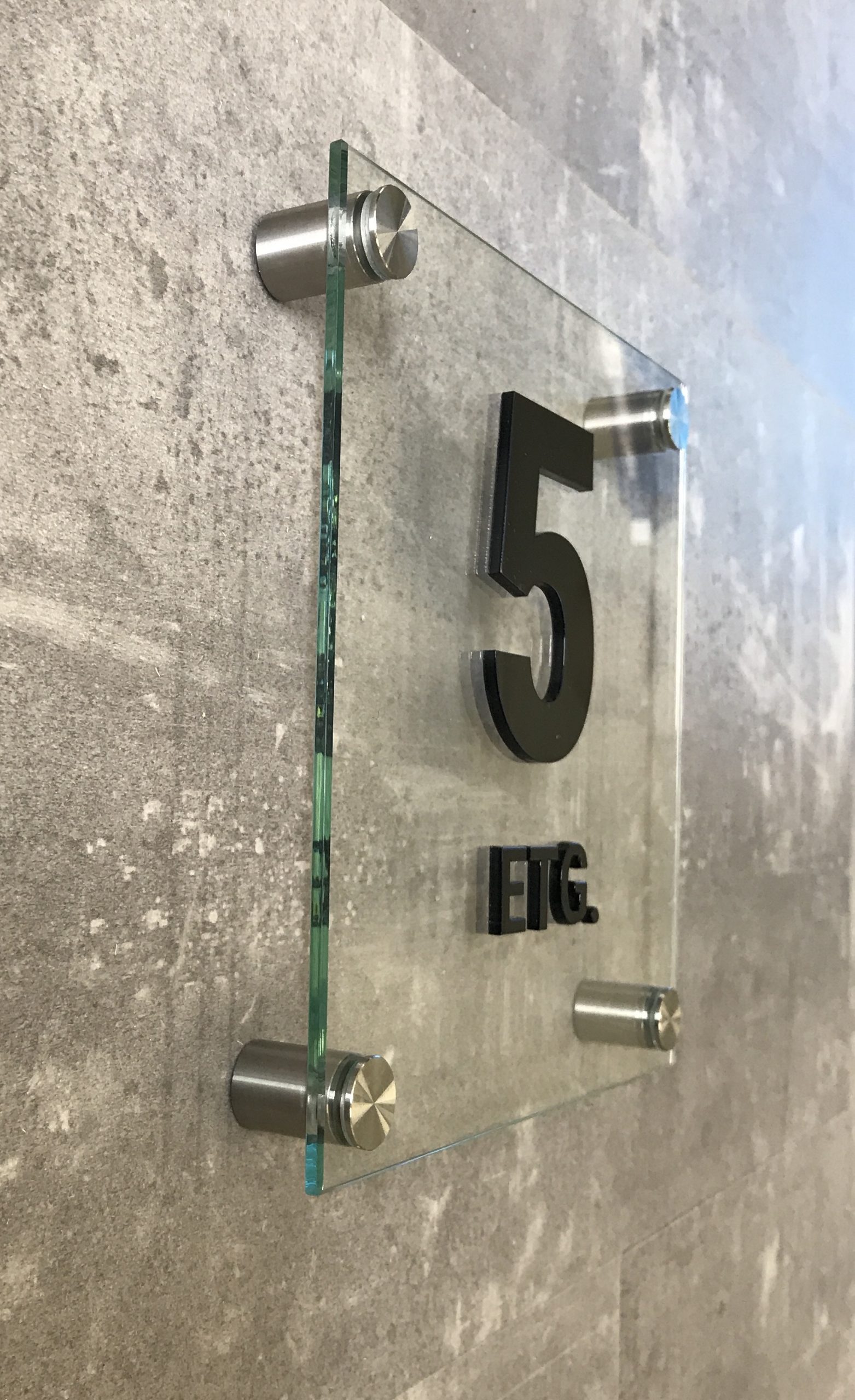

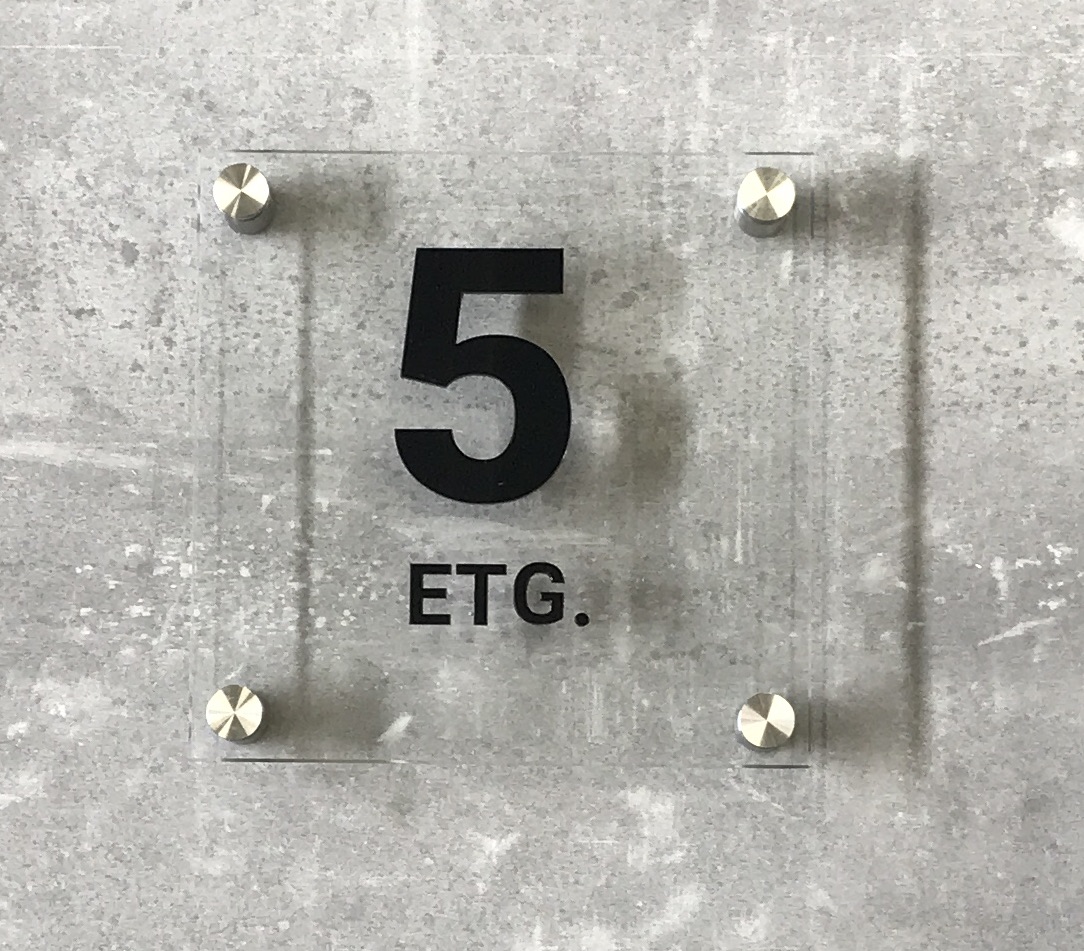

Tempered glass floor signs with spacers
£949.00
Smart Tactiles Tempered Glass Floor Signs with Spacers
The signs consist of a back plate with highlighted numbers and letters so that the visually impaired can feel with their fingers the floor number.
Mounted on a 4 mm. thick tempered glass plate for an exclusive look and attached to the wall with stainless steel spacers. With good colour contrast between the back plate and numbers / letters information is very clear.

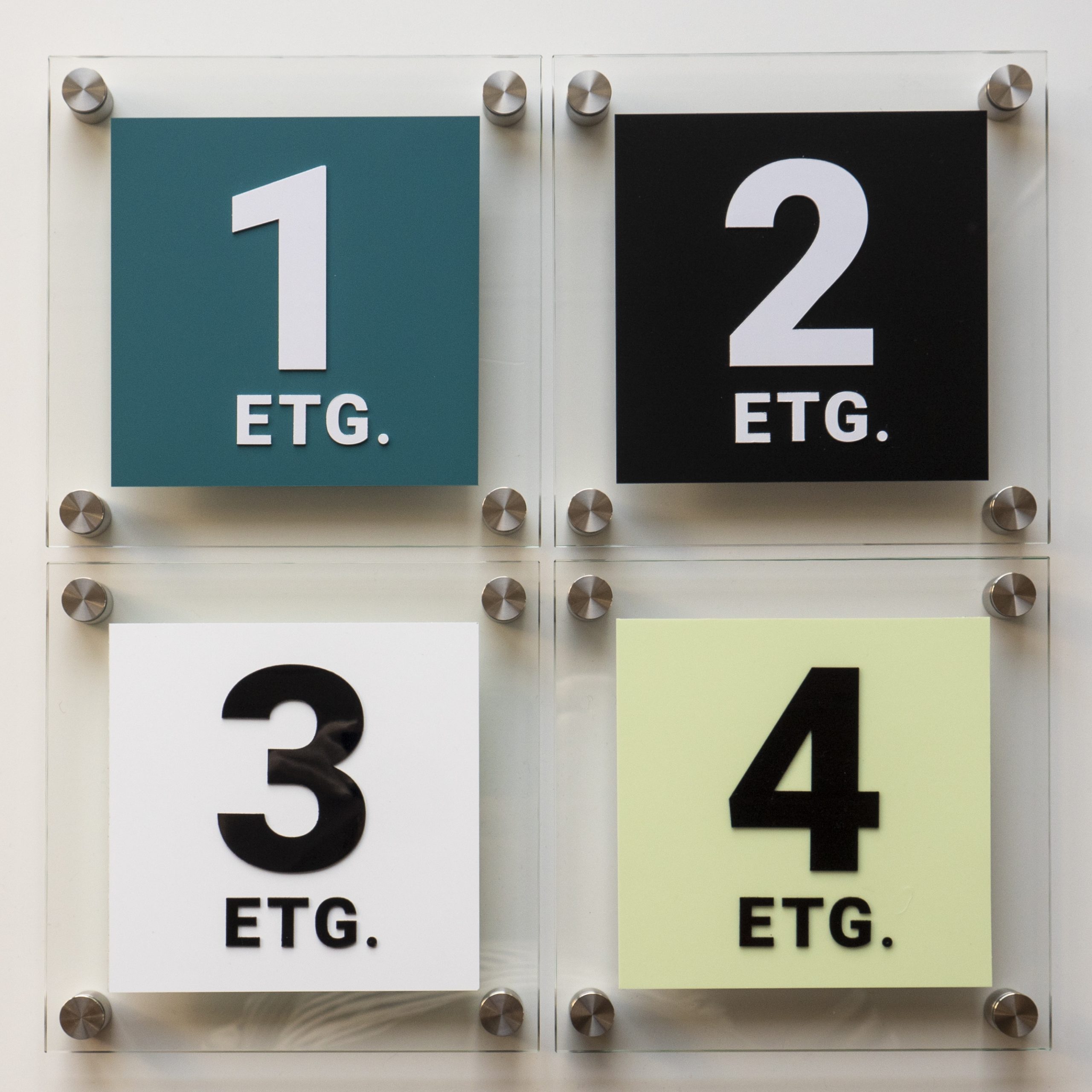

Choose from several background colours, one of which is yellow / illuminated. Illuminated means that the sign will light up if the general lighting is gone. This is either because the light is switched off, the power goes out, or it is dark due to smoke in connection with fire. In many buildings, there are requirements for both tactile and illuminated floor signs. With Smart Tactile's illuminated tactile floor signs, these features are combined into one sign.
INFORMATION:
Baking tray:
- ADA Alternative from Rowmark. Developed to comply with (ADA) Americans with Disabilities federal regulations.
- Surface: matt, fingerprint resistant, UV stable.
- Colours: white, black, charcoal grey, light grey, luminous (yellow), turquoise, brick red. (Other colours on request).
- Dimensions: 150 x 150 mm. Thickness: 1.6 mm.
- Mounted on tempered glass.
Tempered glass with spacers:
- Dimensions: 200 x 200 mm. Thickness 4 mm.
- Straight corners.
- 4 holes - Ø 11 mm.
- 4 spacers - Ø 18 mm. Stainless steel.
Numbers and letters:
- Material: acrylic.
- Colours: black and white.
- Thickness: 2 mm.
Additional information
| Weight | 0.574 kg |
|---|---|
| Dimensions | 20 × 20 × 0.068 cm |
| Colour | White, Black, Charcoal Grey, Light Grey, Etterlysende, Bahama Blue, Canyon |
| Floor | U3, U2, U1, 0. etg, 1. etg, 2. etg, 3. etg, 4. etg, 5. etg, 6. etg, 7. etg, 8. etg, 9. etg, 10. etg, 11. etg, 12. etg |
Montering
- Til monteringen trenger du vater og tommestokk, egnede skruer for underlaget, og bomulls- eller bambus hansker for å beskytte den klare glassplaten.
- Skiltet monteres på vegg med avstandsstykker. Monter skiltet i høyde 140 – 160 cm, ideelt 150 cm.
- Finn det optimale monteringsstedet og tenk estetikk og synlighet.
- Gjengene på avstandsstykkene er links (motsatt). I tester som er gjort med blant annet berusede mennesker, viser det seg at avstandsstykker med linksgjenge er utsatt for mindre hærverk.
