Use the smart calculator to calculate how many long indicators are needed for a guideline. .
For example: choose a colour, press, say, 30 metres to obtain the relevant number and price. Choose from 1 – 100 metres.
The indicators are delivered with one of the market’s strongest adhesives 3M VHB 5952 and with a 5-year guarantee on adhesive.
Use template for efficient assembly and perfect results.
Illuminating tactile indicators – 13 cm running metre calculator
£40.50 – £4,131.30

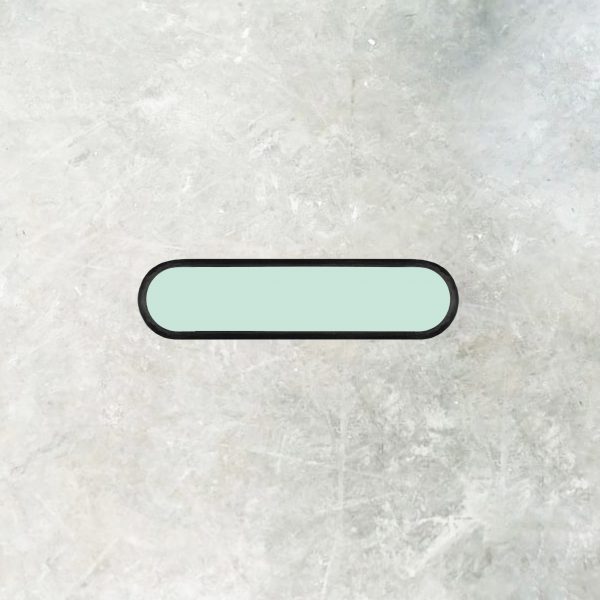

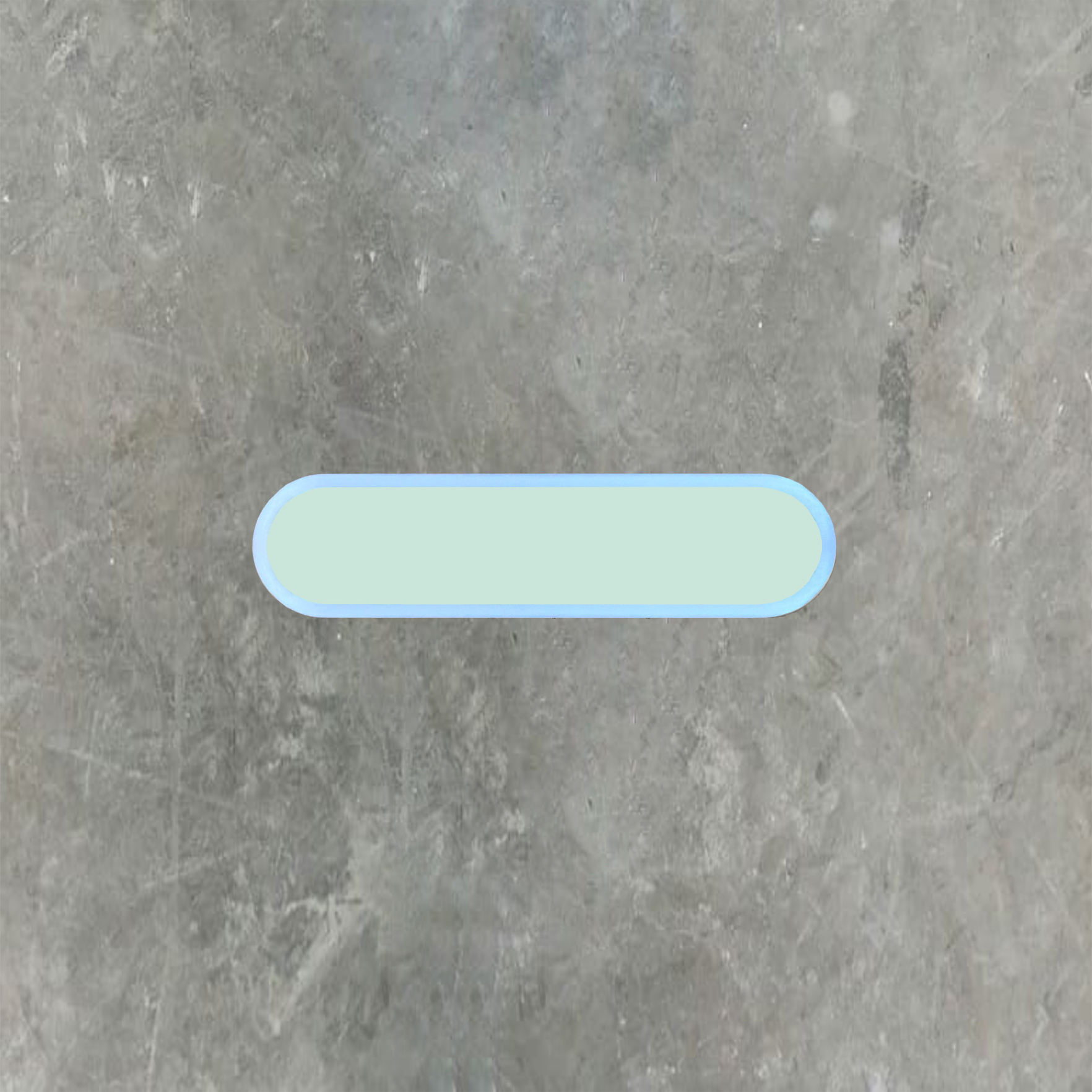

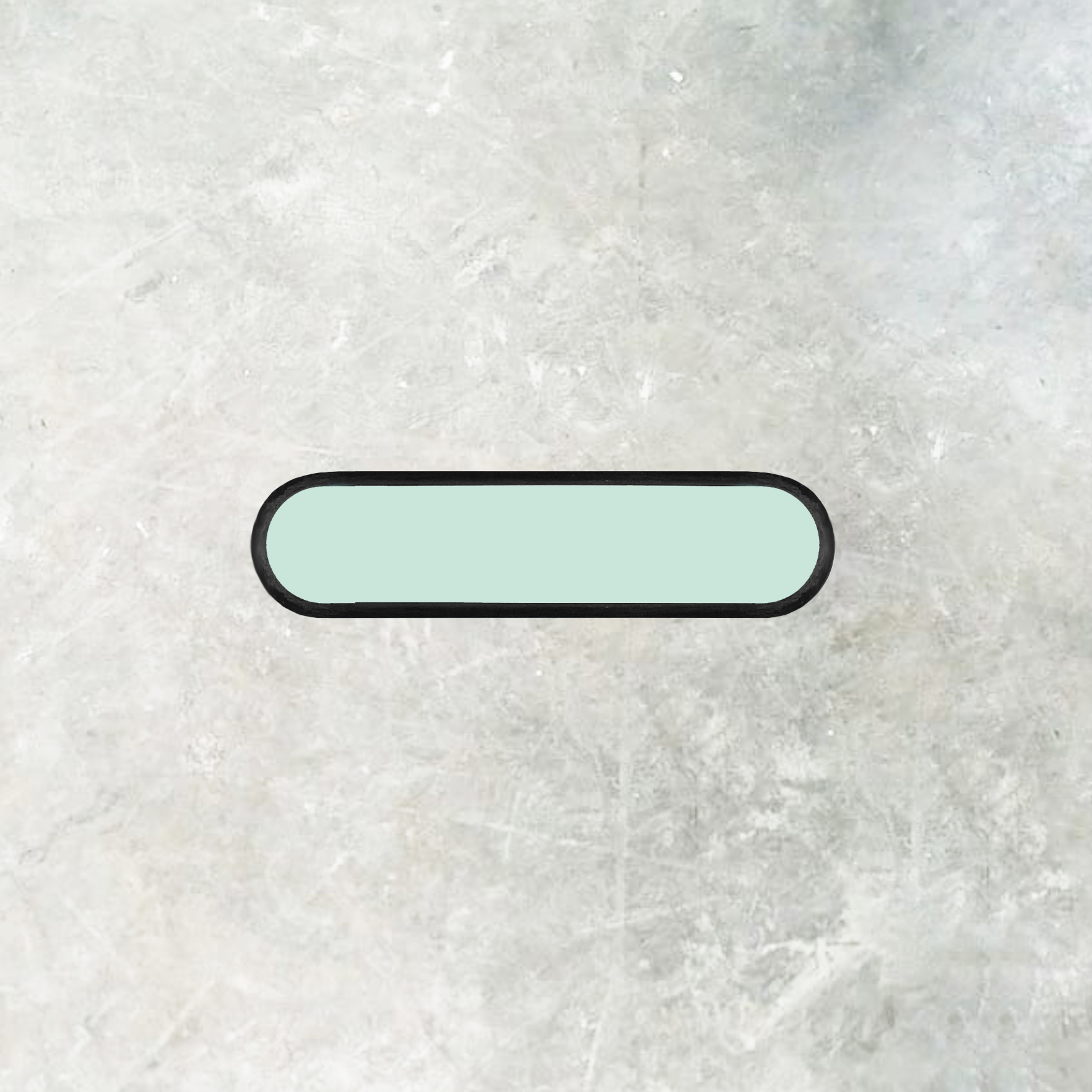

Illuminated tactile indicator: length 13 cm.
The indicators help the visually impaired and the blind to find their way around buildings.
INFORMATION:
- Type: Tactile indicator combined with illuminating material for marking the part of the danger area where it may also be marked with illuminating
- Goal:
- External dimensions: 32 mm diameter width / 130 mm length / 3.7 mm height incl. glue
- Internal dimensions illuminated: 25 mm width / 120 mm length
- Material: Nylon composite material reinforced with fibreglass for extra strength
- Illuminated vinyl material for durability and strong luminance when dark or smoky
- Environment: The tactile part of the indicator is made of 100% recyclable material
- Colours: Dark anthracite NCS S7502-B and light grey NCS S2000-N
- Glue: 3M VHB5952 (see own FDV)
- Warranty: 5 year warranty on adhesive booklet
Produced in composite for reuse.
See installation guides and videos.
Use templates for efficient assembly and perfect results. Manufactured for reuse.
Additional information
| Weight | 0.0294 kg |
|---|---|
| Dimensions | 28 × 3.2 × 0.37 cm |
| Colour | White, Black, Charcoal Grey, Light Grey, Etterlysende, Bahama Blue, Canyon, Light, Dark |
| Length in metres | 1m, 5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m, 50m, 55m, 60m, 65m, 70m, 75m, 80m, 85m, 90m, 95m, 100m |
| Colour | Light, Dark |
Installation
- View assembly videos
- Clean the area first with ST Naturrens . ST Naturrens is a natural cleanser and not dangerous to inhale.
- Always use templates for better efficiency and correct results. </li >
- Attach the template with tape at each end. Glue the products to the floor directly in the template. The glue is so strong that plugs, which were used before, are now superfluous.
- Move the template down as you load the products.
- Step on the better attachment indicators after they are laid.
- The indicators can be used directly after installation, but it should not be washed until after 24 hours so that the glue has enough time to harden.
- Choose the right template under related products.
